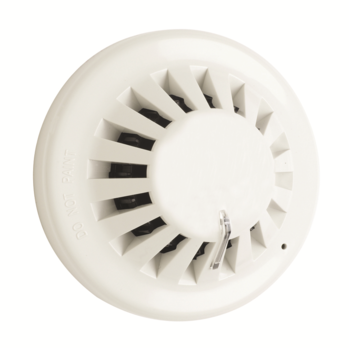

Conventional Multi-mode Detector Fxn922
Summary/ Overview
The JSB multi-mode detector has 5 different modes within a single detector. This multi-mode detector can be configured to operate as either an optical detector, opto/heat multi-sensor or 1 of 3 heat detector modes (A1R,BS, CS) using the four position switch located at the back of the detector.
Product Description/ Features/ Specifications
The detector has a dual LED indicator - the red LED is lit continuously to indicate alarm condition, the amber LED when lit continuously indicates that the detector has reached the limit of its contamination compensating ability.
The amber LED can also be pulsed from the panel to locate wiring faults thereby saving time and cost by facilitating the fault finding process. Red LED, fire condition
Features
- • Drift compensation dual LED
- • 360° viewable LED design
Benefits
- • 5 modes in 1 detector
- • Unobtrusive design
- • Common mounting base
- • Improved system integrity
| Code | FXN922 |
| Description | Multi-mode detector |
| Standards | EN54 Pt5 & Pt7 2000: A1 2002 |
| Specification | |
| Operating Voltage | 15V dc to 30V dc |
| Standby Current | 70μA |
| Startup Current (for 20s max) | 340μA |
| Alarm Current | 25mA (max) |
| Heat Detector Class | |
| (as define by EN54-5:2000) | A1R, BS, CS programmable |
| Alarm Temperature (static) | 60°C A1R, 77°C BS, 92°C CS |
| Visual Indication | Red (alarm) Amber (fault) |
| Environmental | |
| Operating Temperature | -10°C +50°C |
| Humidity (Non Condensing) | 0 to 93% RH |
| Physical | |
| Construction | PC/ABS |
| Colour | White |
| Dimensions | |
| Excluding Base (H x Dia) | 42mm x 101mm |
| Including Base (H x Dia) | 55mm x 104mm |
| Weight (excluding base) | 78g |
| Ingress Protection | IP40 |
| Compatibility | |
| Suitable for use with | JSB fire systems |
