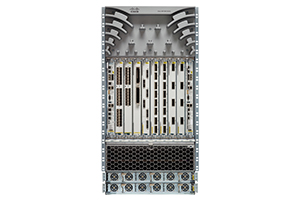

Cisco Asr 9910 Router
Summary/ Overview
The Cisco ASR 9910 Router supports 8 line-cards, with each slot capable of switching up to 4 Tbps of bi-directional traffic. The ASR 9910 has a midplane fabric architecture allowing for a smaller chassis footprint while and greater flexibility to scale capacity as needed. Running on Cisco IOS XR Software, the ASR 9910 has feature parity with all other ASR 9000 series chassis.
Product Description/ Features/ Specifications
Specifications at a Glance
| Model | ASR 9910 |
|---|---|
| Slots | 8 Line Cards 2 RSPs 5 Fabric |
| Rack Size | 21 RU |
| Bandwidth Per Slot | 4 Tbps |
| Max Capacity | 64 Tbps |
| Size (H x W x D) | 36.688 in. x 17.60 in. x 31.266 in. |
| Power | AC: 6 kW power module DC: 4.4 kW power module Note: Mixing of AC and DC modules is not supported |
| Fan | 2 fan trays |
| Airflow | Front to Back |
| RSP / RP | 2 (1+1 RSP redundancy) |
| Fabric Architecture | Up to 6+1 fabric redundancy |
| Software | IOS XR |
