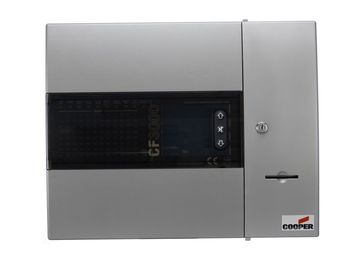

Cf3000 Range Intelligent Addressable Control Panel

Summary/ Overview

The CF3000 series is a high specification, intelligent addressable fire control panel fully certified to En54 parts 2 and 4. With a capacity of 200 addresses and detailed cause and effect programing, itdelivers a comprehensive user interface and logical menu structure. A network capability from 2 to 126 panels, makes the Cf300 flexible for a diverse range of projects and is backed up by a large selection of devices and peripherals.

Product Description/ Features/ Specifications

The Cooper CF3000 is a high specification intelligent addressable control panel which is available in various loop configurations. These panels combine sophisticated functionality with simple operation and an aesthetically pleasing design.

The large capacity, ability to support complex cause and effect programming and wide range of user controllable functions make the system suitable for a diverse range of projects from sheltered housing to large office developments.

The CF3000 uses soft addressing to minimise installation time and remove the potential for error associated with manual addressing. It can operate as a stand alone panel or as part of a networked system. They have powerful programming options that allow configurable control over whether messages from specific panels are transmitted around the network or remain local.

An extensive range of compatible intelligent addressable systems ancillaries are available to work with the CF3000 all of which incorporate an integral short circuit isolator to provide maximum protection against short circuits on the external loop.

Features

  • Available in 1, 2 and 4 loop versions
  • Up to 200 addresses per loop
  • Full network capability up to 126 panels
  • Event History Buffer (9,999 events) with Date/Time stamp
  • Soft addressing
  • Large versatile touch screen user interface
  • Multi-language selection capability
  • Integral printer (optional)
  • Integral battery and power supply
  • Flexible cause and effect programming

Benefits

  • Simple to operate end user touch-screen interface
  • Flexible distributed network capability
  • Full range of compatible accessories
  • Easy to design system cause and effect using site installer software
  • Full system integrity with Cooper managed protocol

Certification logos

code CF30001G CF30002G CF30004G
Description 1 Loop Control Panel 2 Loop Control Panel 4 Loop Control Panel
Standards EN54 Pt2, 1997, A1:2006 EN54 Pt4, 1997, A1:2002, A2:2006 EN54 Pt13: 2005







Specification

Number of Loops 1 2 4
Addresses per Loop 200
Number of conventional sounder circuits 4 monitored for open and short circuit
Auxiliary Fire Routing Equipment Output (Monitored) 24V 30 mA (max)
Auxiliary Fault Protection Equipment Output (Monitored) 24V 30 mA (max)
Auxiliary Fault Routing Equipment Output (Monitored) 12V 30 mA
System Operating Voltage 24V dc (nom)
Mains Input Supply 230V ac +1%/-15%
Class Change Facility Terminals for connection of external contacts, can also be instigated via input interface
Auxiliary Relay 1 set of changeover contacts operate in event of fire condition
Output Ports RS485, RS232 for connection of repeaters etc
Standby Duration Dependent on loop loading and battery configuration
Battery 2 x 12Ah (standard versions) 2 x 12Ah (standard versions) 4 x 12Ah (EB versions) 2 x 12Ah (standard versions) 4 x 12Ah (EB versions)





















Environmental

Operating Temperature -5OC - +40OC
Humidity (Non Condensing) 0 to 75% RH

Physical

Construction Back – Box – Mild Steel, Front Door – PC/ABS
Dimensions (HxWxD) Standard Versions: 397mm x 497mm x 180mm

Standard Versions: 397mm x 497mm x 180mm

EB Versions: 397mm x 497mm x 280m
Weight 18kg
Ingress Protection IP30
Cable entries

Top: 31 cable knockouts (20mm)

Back: 12 cable knockouts (20mm)
System Networking Fully networkable up to 126 panels (requires additional network card – 1 per panel)
